Brand Name : Zhenglan cable
Model Number : single copper wire
Certification : 3C,CE, ISO 9001:2015,ISO 14001:2005
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : L/C,T/T,,Western Union
Supply Ability : 1500km
Delivery Time : 5~15 days
Packaging Details : 100m/Roll, 90m/roll or as request
Material : Class 1 Copper
Insulation : PVC
Application : for home usage
Conductor type : bare copper
Running Voltage : 300/500V;450/750V;
Color : black, red, green, blue, yellow/green
Country of original : Henan, China
Port : Qingdao or Shanghai
Installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.

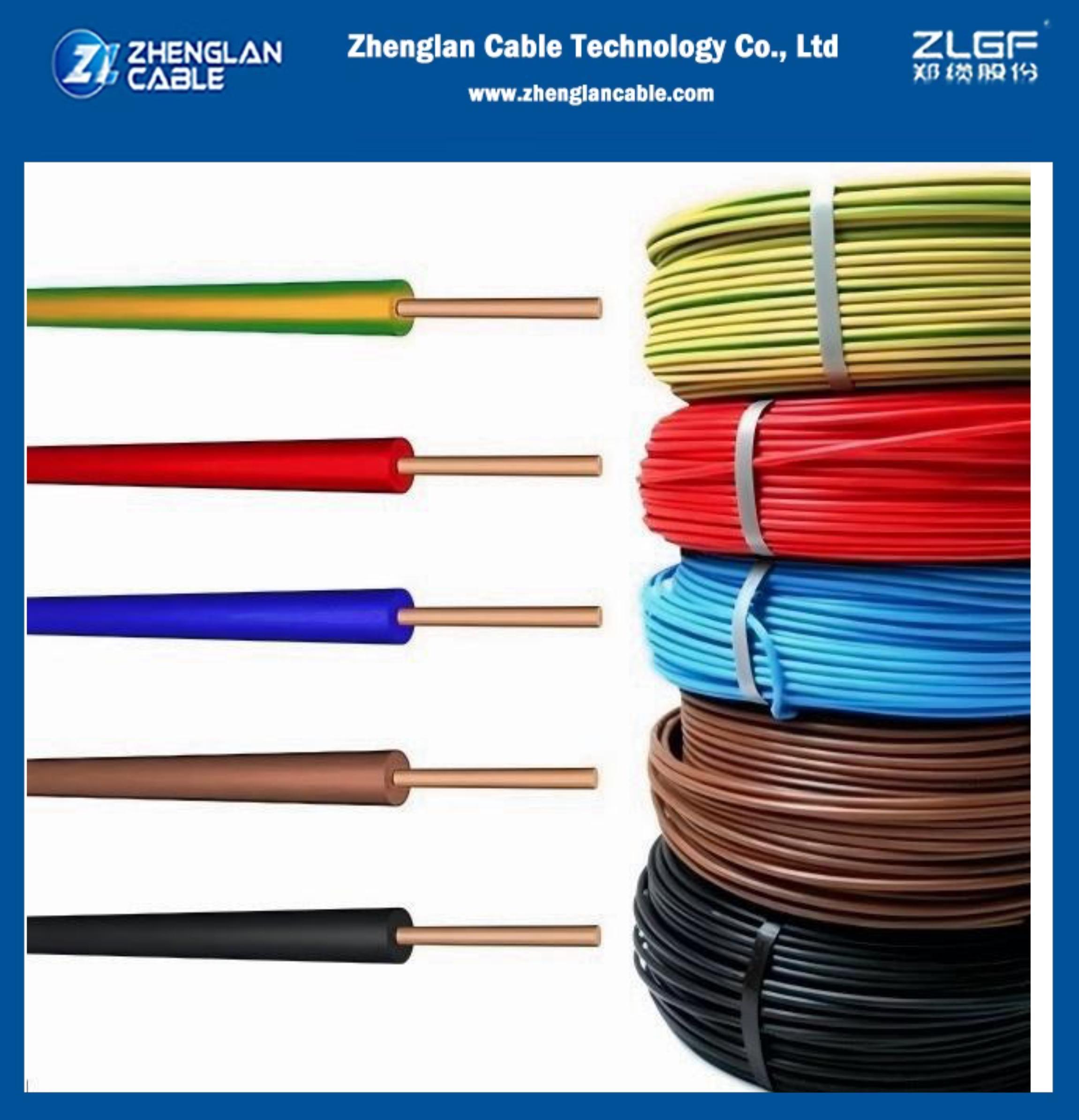

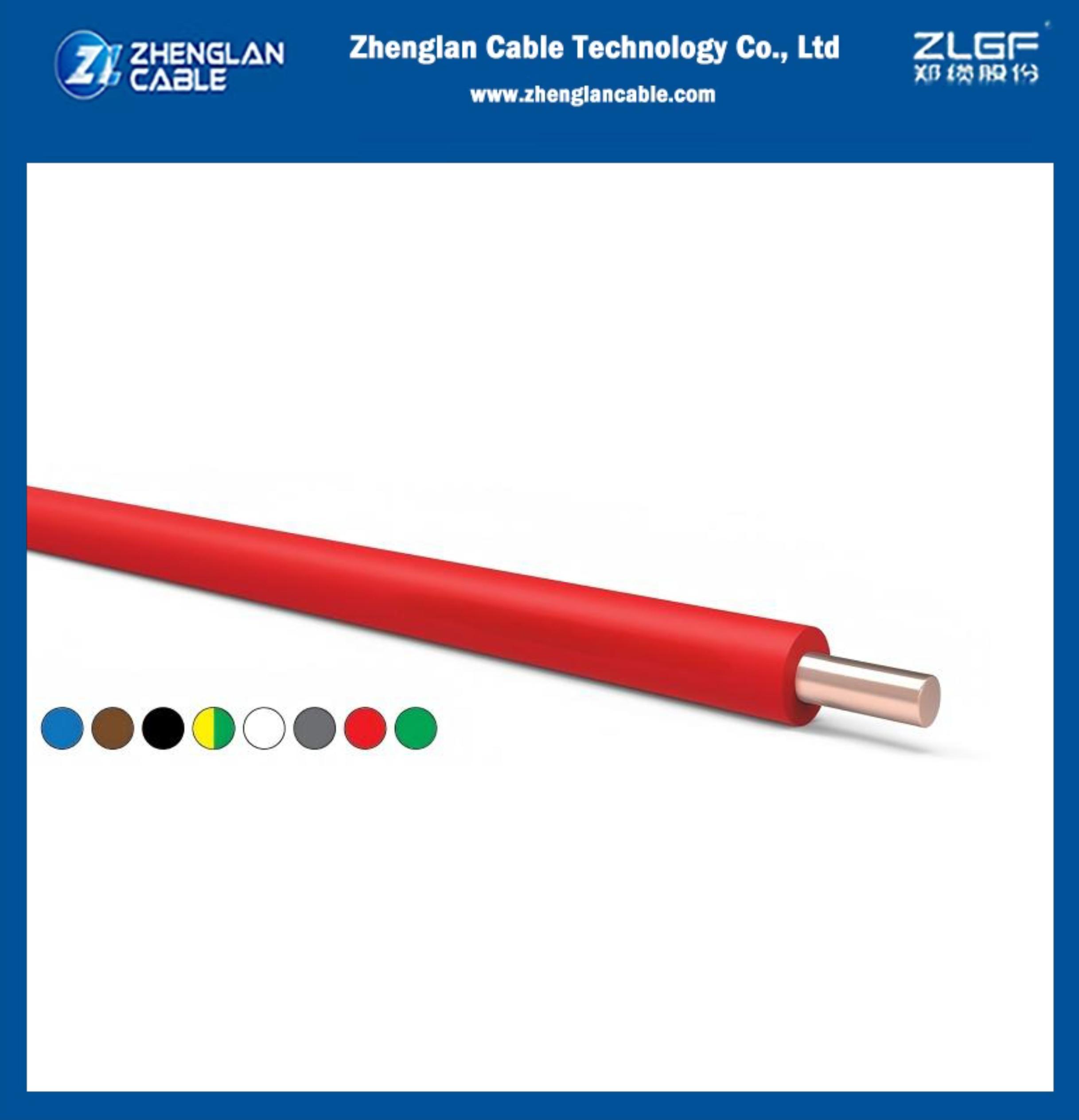

Product model: PVC single core solid insulated wire
Number of cores: 1 core
Product specifications: 1.5-400mm², 0.5-1mm², 0.75-1mm²
Product colour: red, yellow, blue, green, black; other colors can be customized
Rated voltage: 450/750V, 300/500V, 300/500V
The length of the whole plate: 100m (national standard full meter)
Suitable for use in fixed wiring of power installations and electrical equipment with AC rated voltage 450/750V and below.
Cable Structure
Copper conductor bare, solid acc. to DIN VDE 0295 Class 1 / IEC 60228 Class 1
Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3
Technical data sheet
Nominal section mm² | No. of Strands #/mm | Insulation Thickness mm | Overall Jacket Thickness mm | Approx. Wt. kg/km | Minimum insulation resistance at 70°C Ω·km |
10 | 7/1.35 | 1.0 | 7.0 | 119 | 6.5 |
![]() |
