0.6/1kv XLPE Insulated PVC Sheath 1~5 Cores RV-K Copper Flexible Electrical Wire Cable

Product Description:

The RV-K cable is a low-voltage power cable widely utilized in industrial and commercial electrical setups. It is recognized for its strong insulation and flexibility, making it ideal for fixed installations. These installations can include underground, outdoor areas, and even damp environments. UV and moisture resistance make these systems ideal for outdoor use, providing durability and longevity in challenging environmental conditions. This resistance ensures reliable performance even in harsh weather.

Standards:

IEC 60502-1; UNE 21123-2

Structure:

Conductors: Flexible copper, class 5

Insulation: XLPE (Cross-linked Polyethylene)

Sheath: PVC (Polyvinyl Chloride) or similar material, typically black

Features:

Voltage Rating Uo/U (Um): 0.6/1 kV; 1.8/3kV

Test voltage: 3500V

Permissible operating temperature of the conductor: 90°C

Short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)

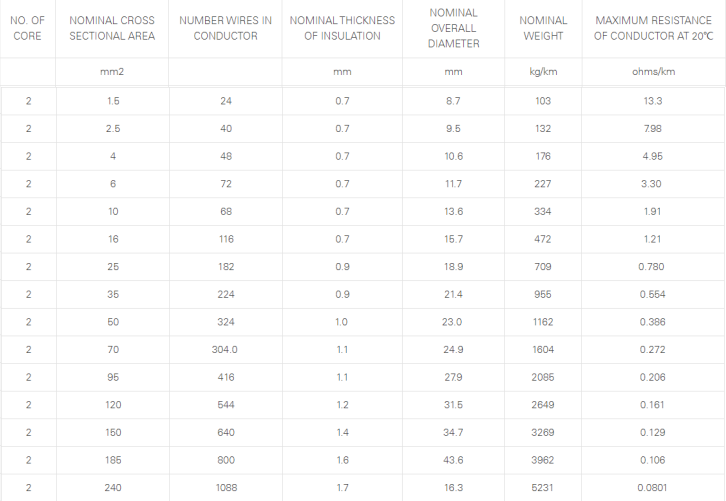

Technical parameter table:
